Fleet connectivity without the complexity.

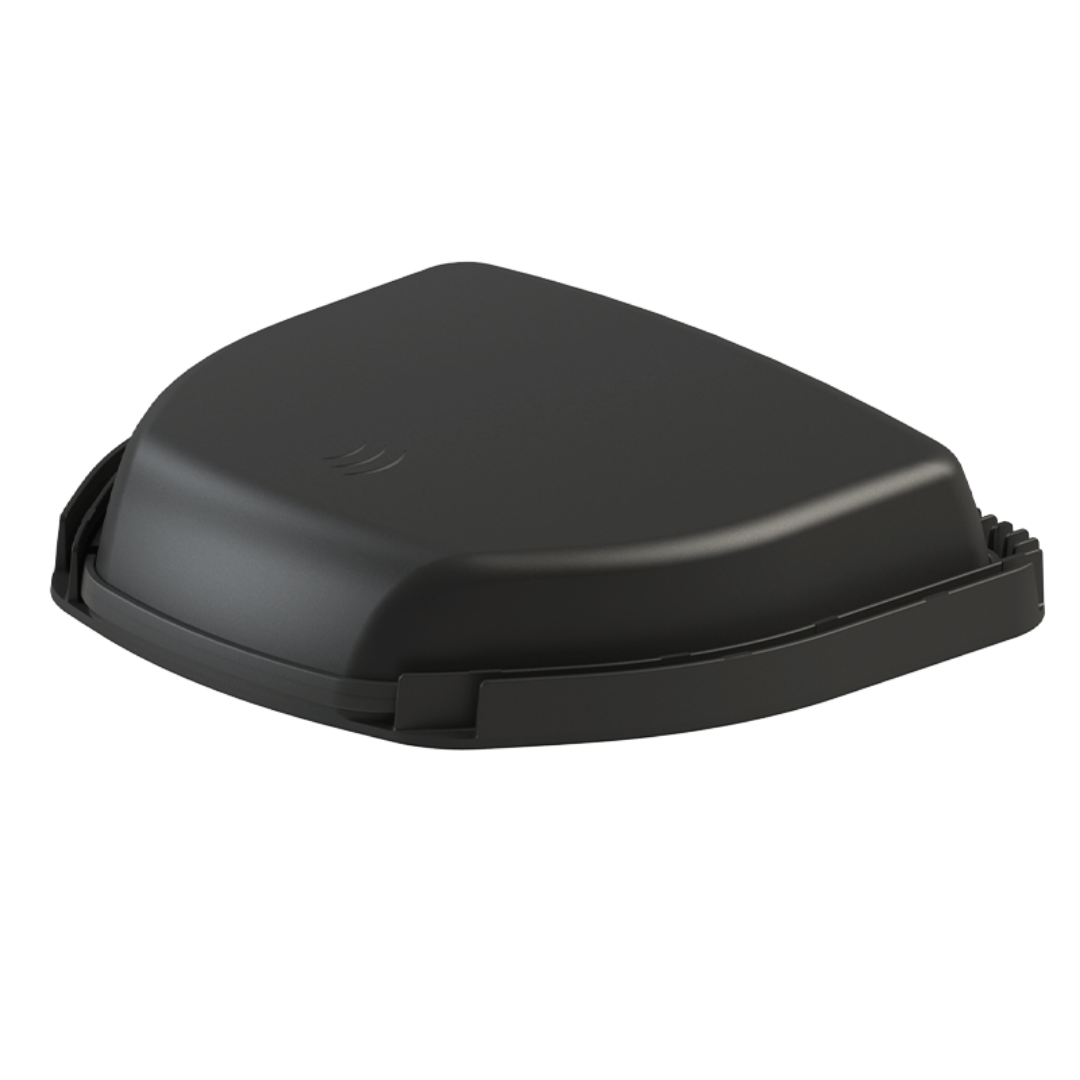

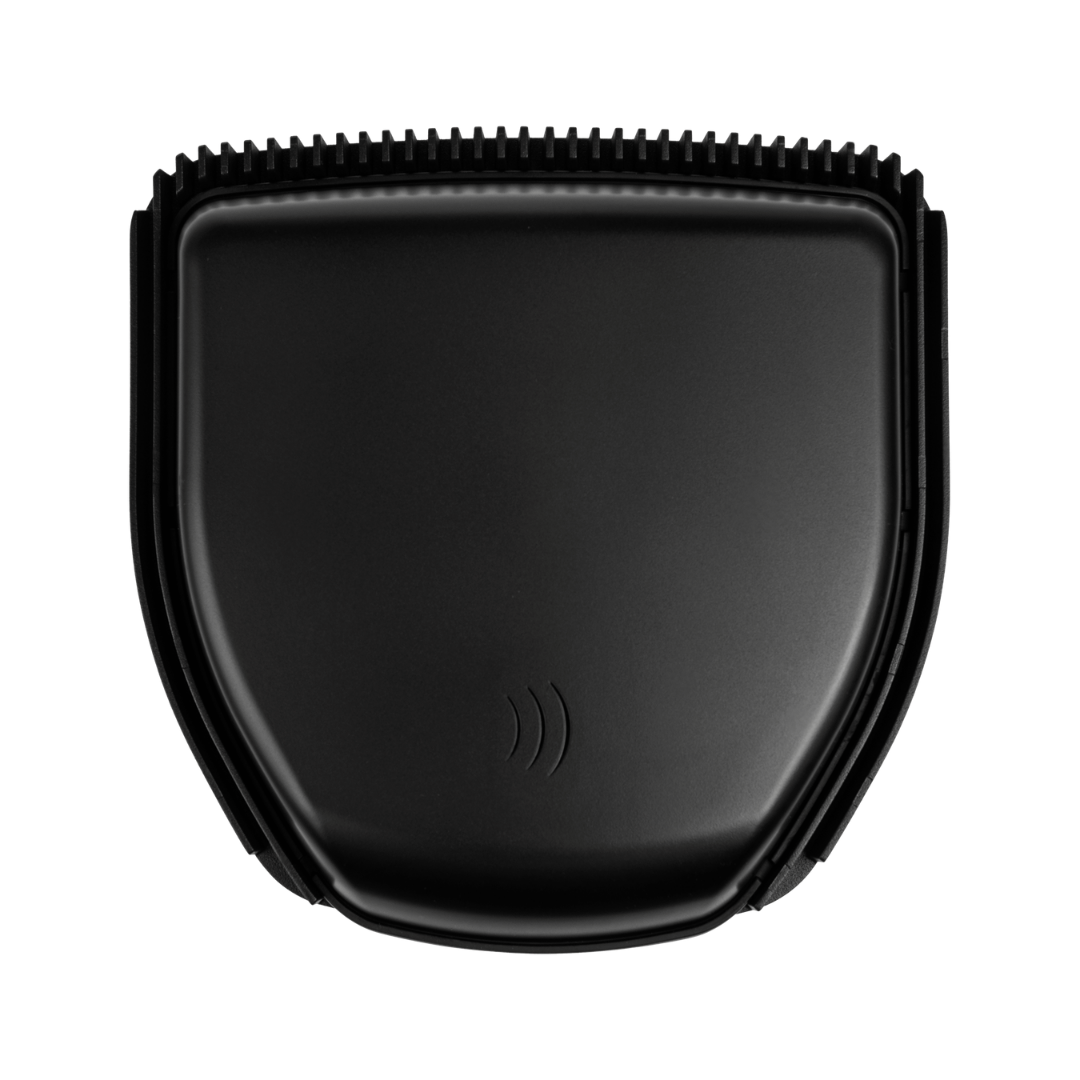

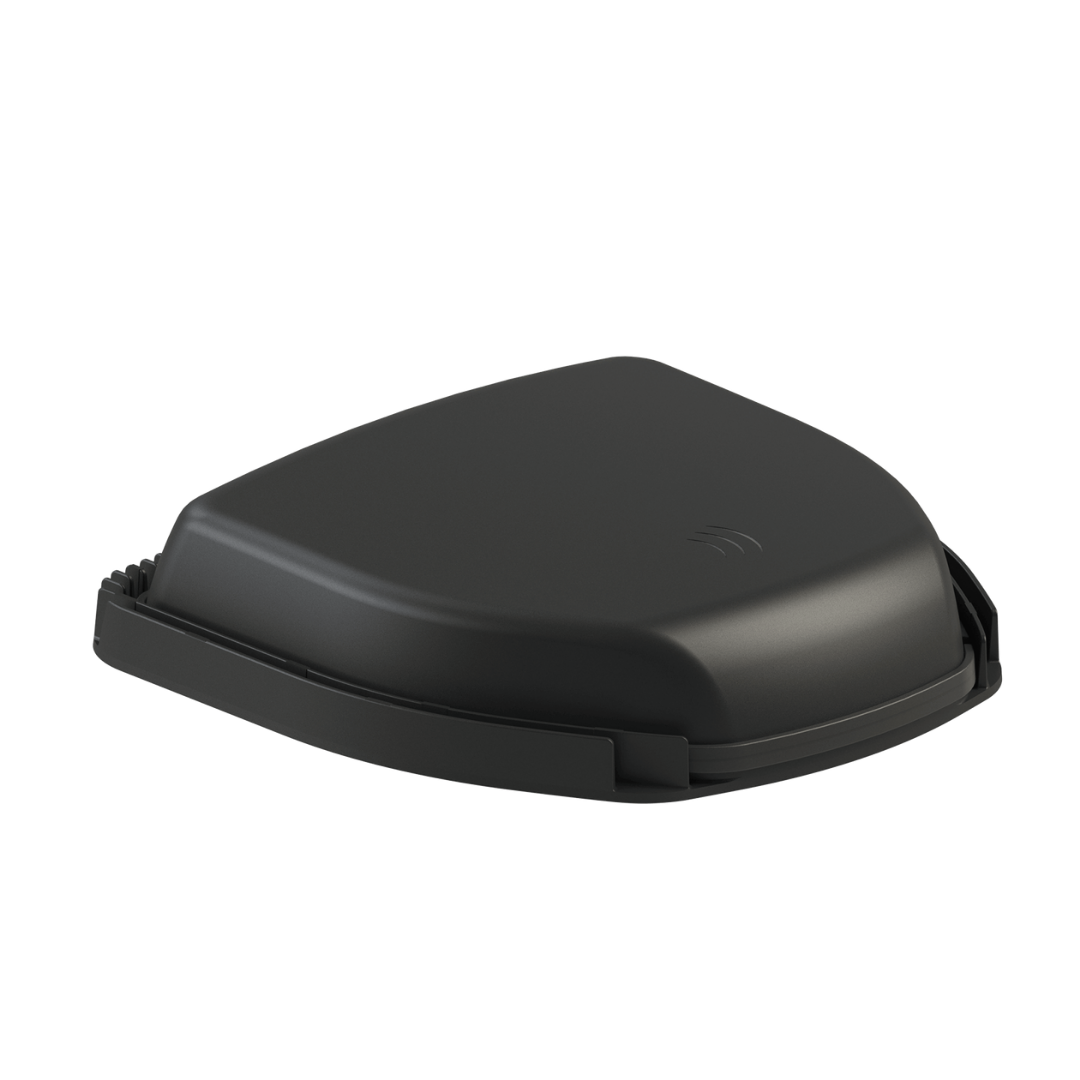

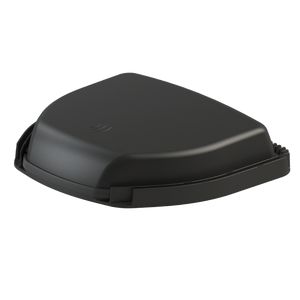

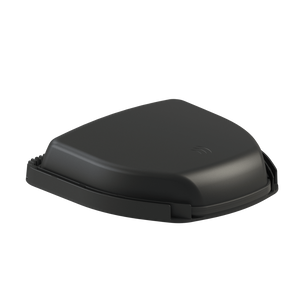

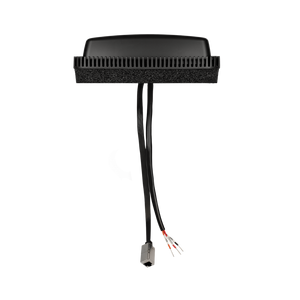

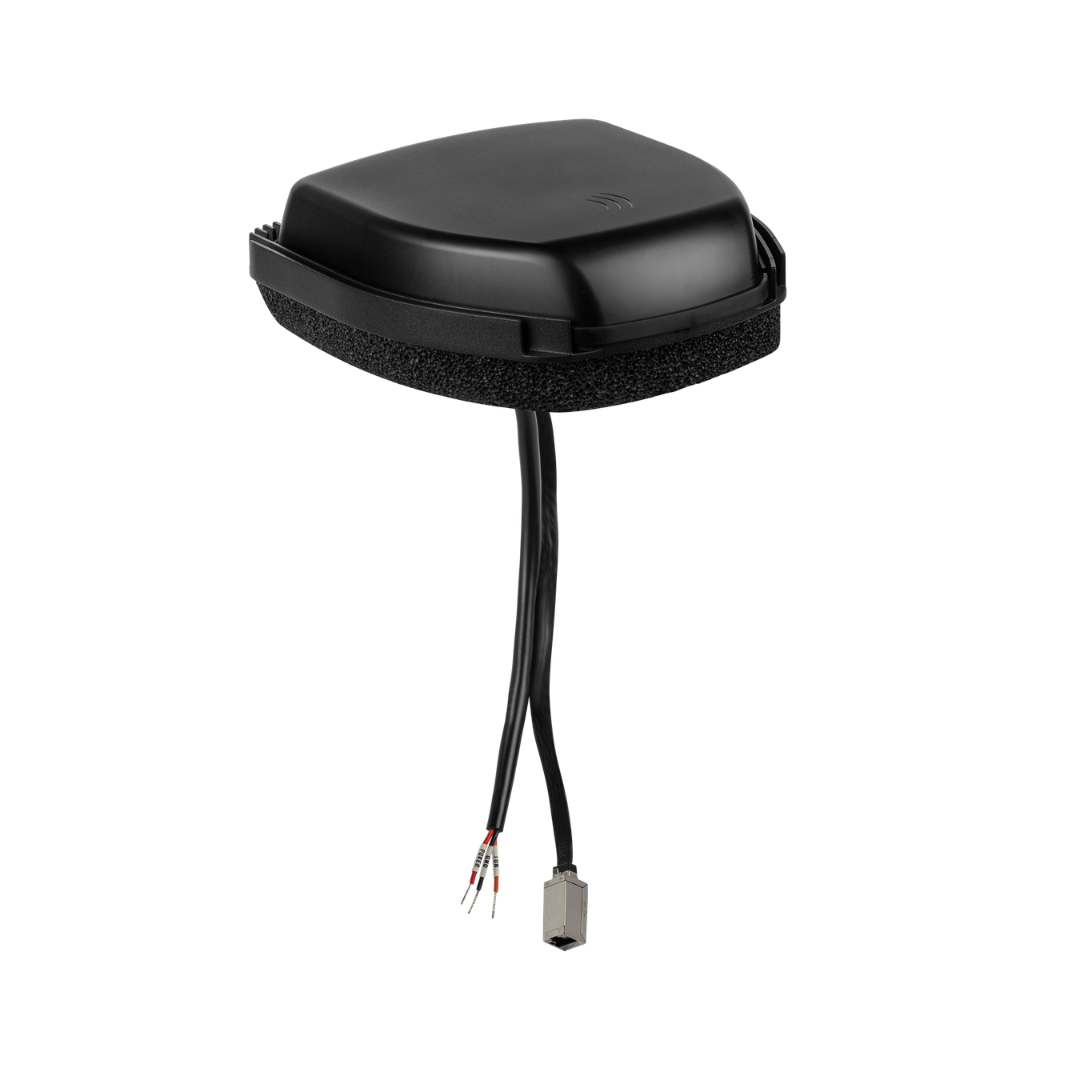

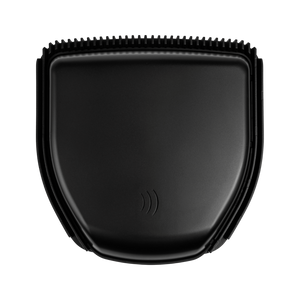

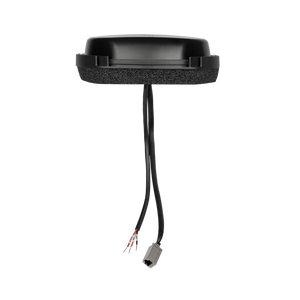

AirgainConnect® Fleet™ (AC-Fleet) is the industry's most compact all-in-one 5G vehicle gateway — integrating a 5G modem, Wi-Fi 6 router, and high-performance antenna in a single roof-mount housing just 2 inches (5.1 cm) tall. Engineered for rugged outdoor conditions, it reduces install time, minimizes cabling, and keeps fleets connected in demanding environments. Manage devices locally or remotely via Airgain's cloud services subscription.
Fleet connectivity without the complexity.
AirgainConnect® Fleet™ (AC-Fleet) is the industry's most compact all-in-one 5G vehicle gateway — integrating a 5G modem, Wi-Fi 6 router, and high-performance antenna in a single roof-mount housing just 2 inches (5.1 cm) tall. Engineered for rugged outdoor conditions, it reduces install time, minimizes cabling, and keeps fleets connected in demanding environments. Manage devices locally or remotely via Airgain's cloud services subscription.
The challenge fleets face
Fleet vehicles often operate where wireless coverage can be spotty or congested. Rural roads, large events, busy corridors, emergency scenes, and remote job sites expose the limits of traditional vehicle connectivity.
Conventional setups rely on long antenna cable runs, multiple components, and single-carrier connections. This leads to weaker coverage, more complex installs, more failure points and more time spent troubleshooting in the field.
Why fleets choose AC-Fleet
A simpler alternative to traditional vehicle router and external antenna systems.
- The most compact all-in-one vehicle gateway
Smaller footprint and fewer components reduce clutter, shorten installation time, and lower the number of potential failure points. - Faster vehicle installation
Up to 2 additional miles of usable coverage by eliminating RF cable loss common in traditional vehicle installations. - Stronger connectivity at the edge
Up to 50 percent less install time with simplified power and networking, returning vehicles to service sooner. - Stay connected as coverage changes
Multi-carrier eSIM automatically switches to next available carrier without physical SIM cards to manage or replace. - Connect multiple devices and teams
Built-in Wi-Fi and wired Ethernet allow crews to connect laptops, tablets, cameras, and vehicle systems through a single, reliable connection.
The AC-Fleet solution
AC-Fleet simplifies vehicle connectivity by replacing multiple components with a single, compact gateway.
It integrates the 5G modem, Wi-Fi, GPS, and antennas into one system, eliminating RF cable loss while simplifying installation and improving usable coverage at the edge.
Multi-carrier eSIM automatically switches networks as conditions change, without physical SIM cards to manage, replace, or risk damage.
Built-in Wi-Fi and Ethernet consolidate connectivity for crews and onboard equipment, replacing SIM-enabled phones or devices with a single gateway.
With minimal cabling and a single power and network connection, AC-Fleet installs in under two hours, making it easy to deploy quickly across your entire fleet.

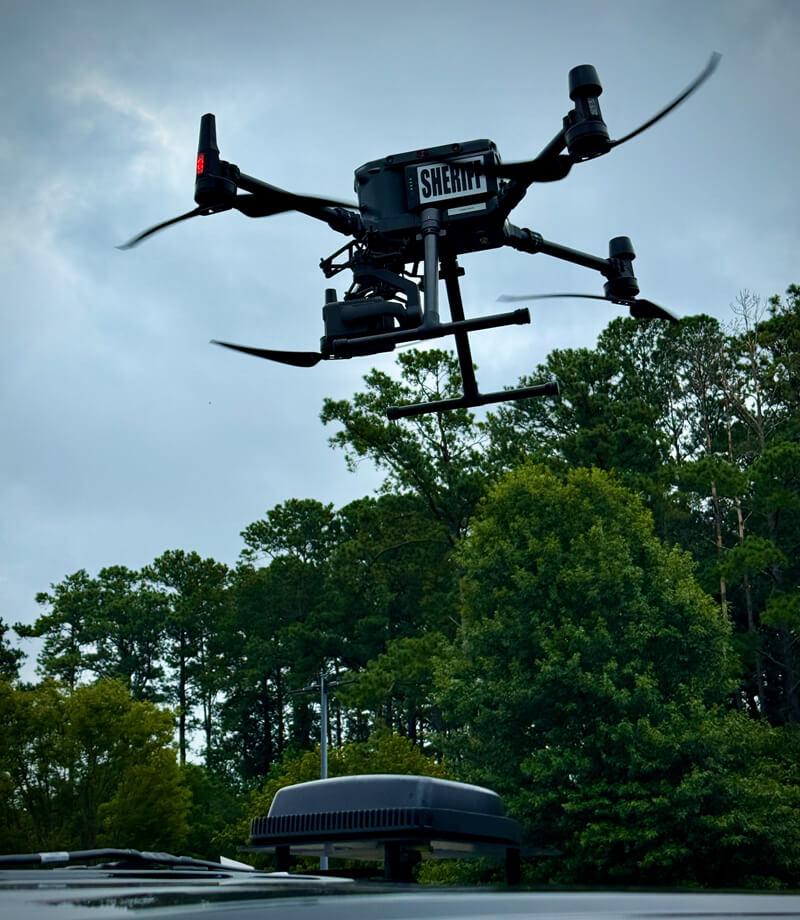

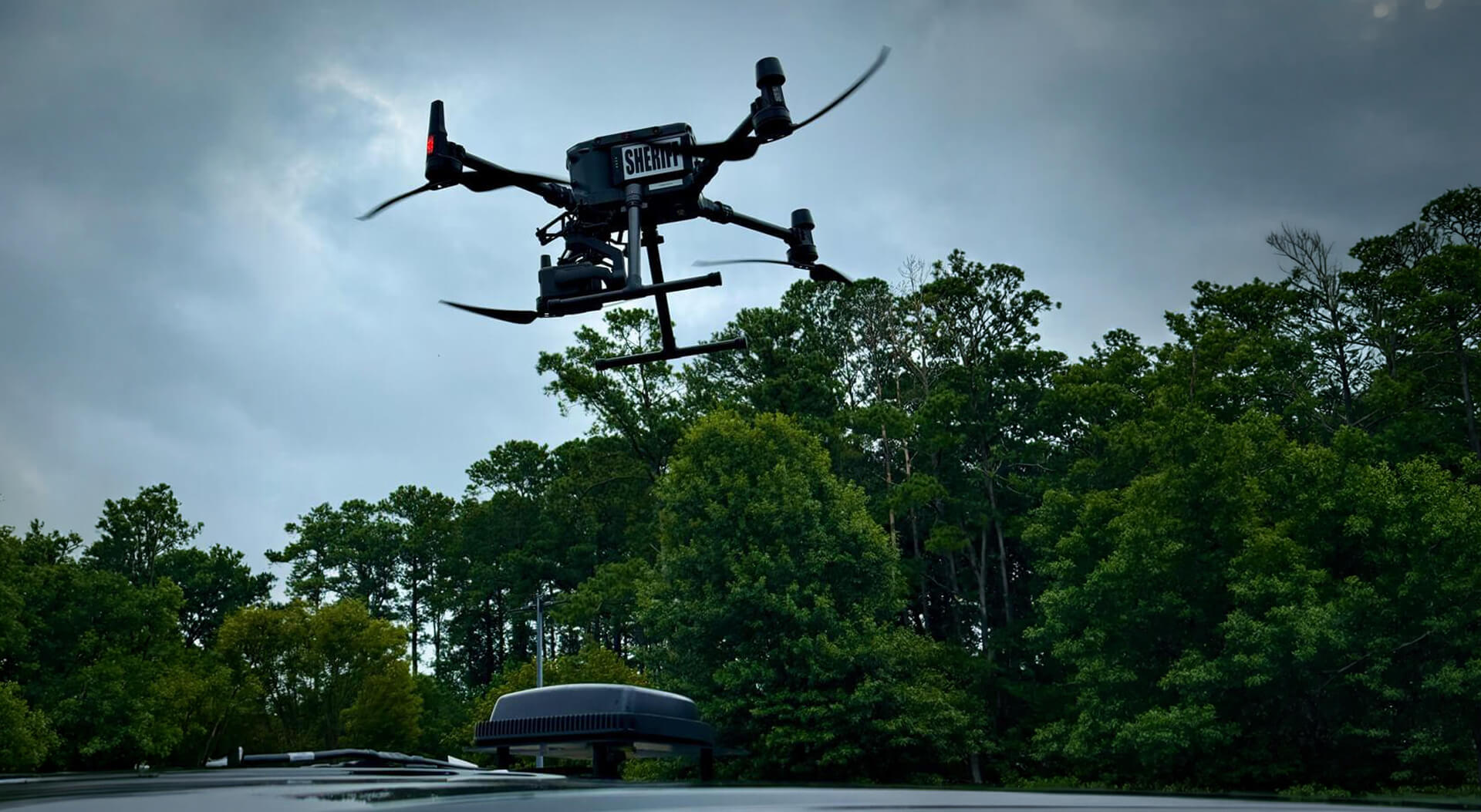

Real outcomes for fleet teams
Trusted when it counts. Proven in the field.
Real stories from teams who rely on Airgain for reliable, simple wireless performance.
Applications
Connectivity for the teams that keep communities running.
AC-Fleet Resources
Everything you need to evaluate, deploy, and scale AC-Fleet across your fleet.

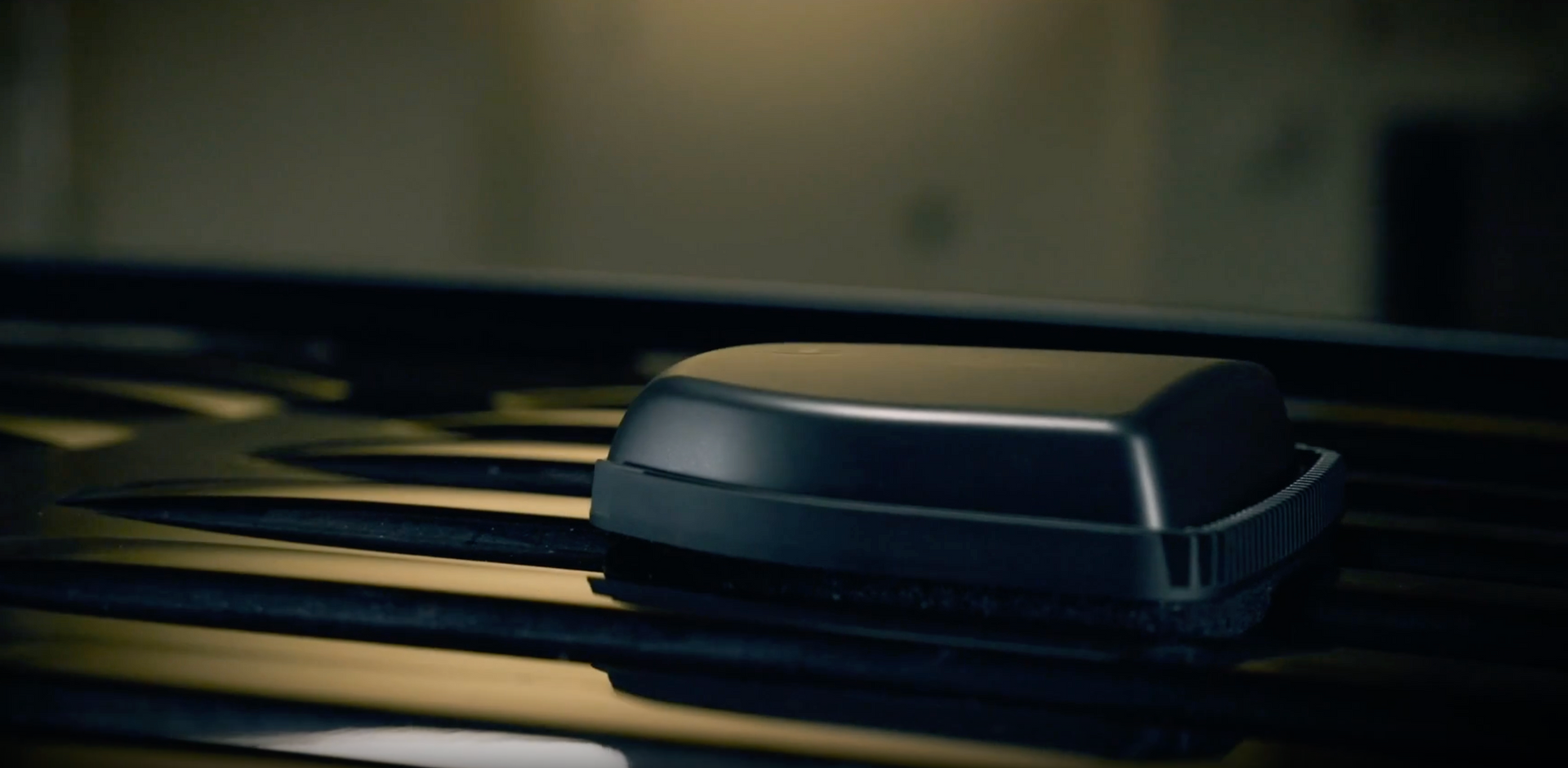

AirgainConnect Fleet, or AC-Fleet™, is an integrated 5G modem, Wi-Fi 6 router and high performance antenna solution designed for mounting to the roof of any vehicle. The compact housing has been certified to thrive in the most rugged outdoor conditions and is a mere 2 inches (5.1 cm) tall to be more covert and less obstructive. Manage each device locally or manage a fleet of devices remotely with a subscription to Airgain's cloud services.
Part Numbers
Vehicle Gateways
| CY-AF5G-B-NAT | AC-Fleet 5G vehicle gateway, black, 1 ft Ethernet and power cables, bolt mount with pre-attached mounting foam, first year of cloud subscription and limited device warranty included |
| CY-AF5G-W-NAT | AC-Fleet 5G vehicle gateway, white, 1 ft Ethernet and power cables, bolt mount with pre-attached mounting foam, first year of cloud subscription and limited device warranty included |
Cloud Subscriptions
| CY-AFC1 | 1 additional year cloud subscription for AC-Fleet (includes up to a 5 year limited device warranty) |
| CY-AFC3 | 3 year (total) upfront cloud subscription when purchased with AC-Fleet (includes limited device warranty) |
| CY-AFC5 | 5 year (total) upfront cloud subscription when purchased with AC-Fleet (includes limited device warranty) |
Optional Accessories
| CY-AFP15 | 15 ft 20 AWG power, ground and ignition cable |
| CY-AFE15 | 15 ft Cat6 shielded Ethernet cable with male connectors on both ends |
| CY-AFES-E6P4 | 4-Port PoE Gigabit switch + 2 LAN ports, 9–36VDC, ignition sense with power off delay timer |
| CY-AF5G-RK | Remount kit for AC-Fleet with replacement adhesive pad, mounting foam and conductive pads |
| CY-AFCL | Cigarette lighter power adapter for AC-Fleet with 15 ft of cable |
| CY-AFWM | Wall mount AC/DC to cigarette lighter power converter for CY-AFCL |
| AP-MAG | Universal magnetic mount adapter, compatible with AC-Fleet |
| AP-SCM | Universal suction mount adapter, compatible with AC-Fleet |
| AP-WP-B | EZConnect whip base adapter, Black, 1 ft coax (whip antenna NOT included) |
| CH-P-A-14 | EZConnect cable harness for AP-WP-B with Mini UHF connector, 14 ft length |
| AP-XTQ | 1.25" bolt extension kit for installations on thicker roofs, up to 1.5" hole diameters, and between ribs of Ford Explorer |
Connectivity
| Cellular Connectivity |
|
| Wi-Fi |
|
| Ethernet (LAN) |
|
| GNSS |
|
| Antennas | Integrated high-performance antennas |
| Management | Local web UI; Remote cloud management via Airgain AC-Cloud (1-year subscription included) |
Environmental
| Operating Temperature | -30 to 70 degrees C (-22 to 158 degrees F) -- reduced performance at or above 70 degrees C |
| Storage Temperature | -40 to 85 degrees C (-40 to 185 degrees F) |
| Humidity (Non-Condensing) | 95% RH at 60 degrees C |
| Ingress Protection | IP67 (dust tight; water immersion up to 1 m) and IP69K (dust tight; 80 degree C high-pressure wash) |
| Corrosion | IEC 60068-2-52 and SAE J2334 salt spray |
| Shock and Vibration | MIL-STD-810G, SAE J1455 and EN61373 |
Power
| Input Voltage | 7-36 VDC with software-configurable minimum voltage to protect vehicle battery |
| Ignition Sense | Automatic power-up; configurable power-down timer |

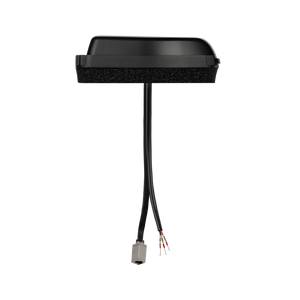

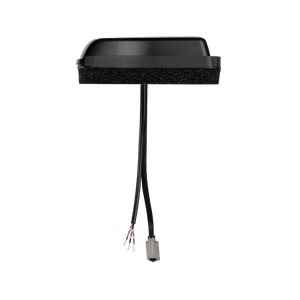

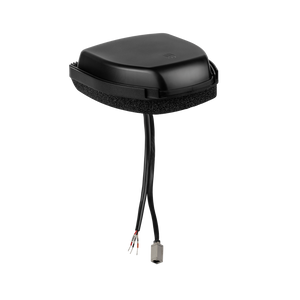

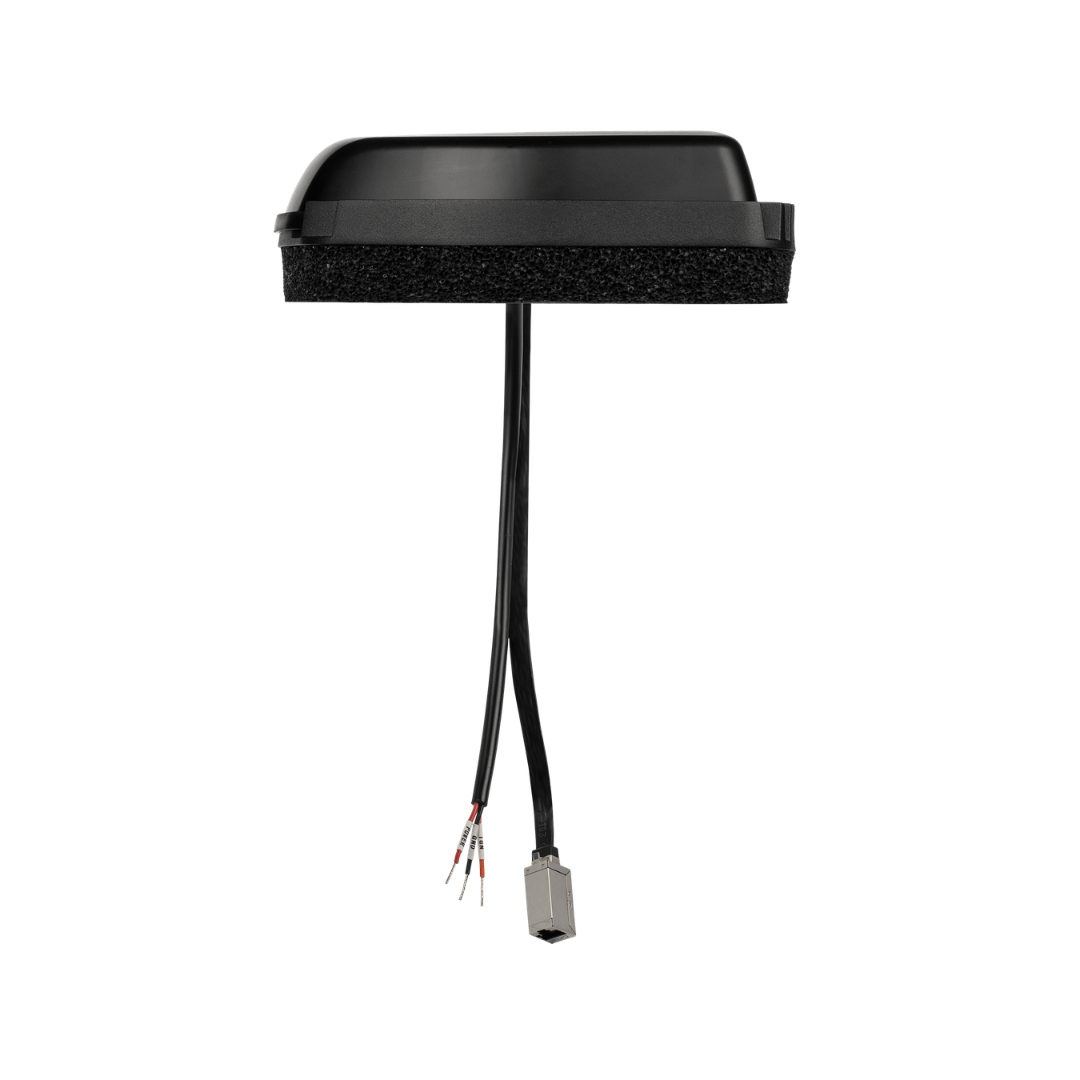

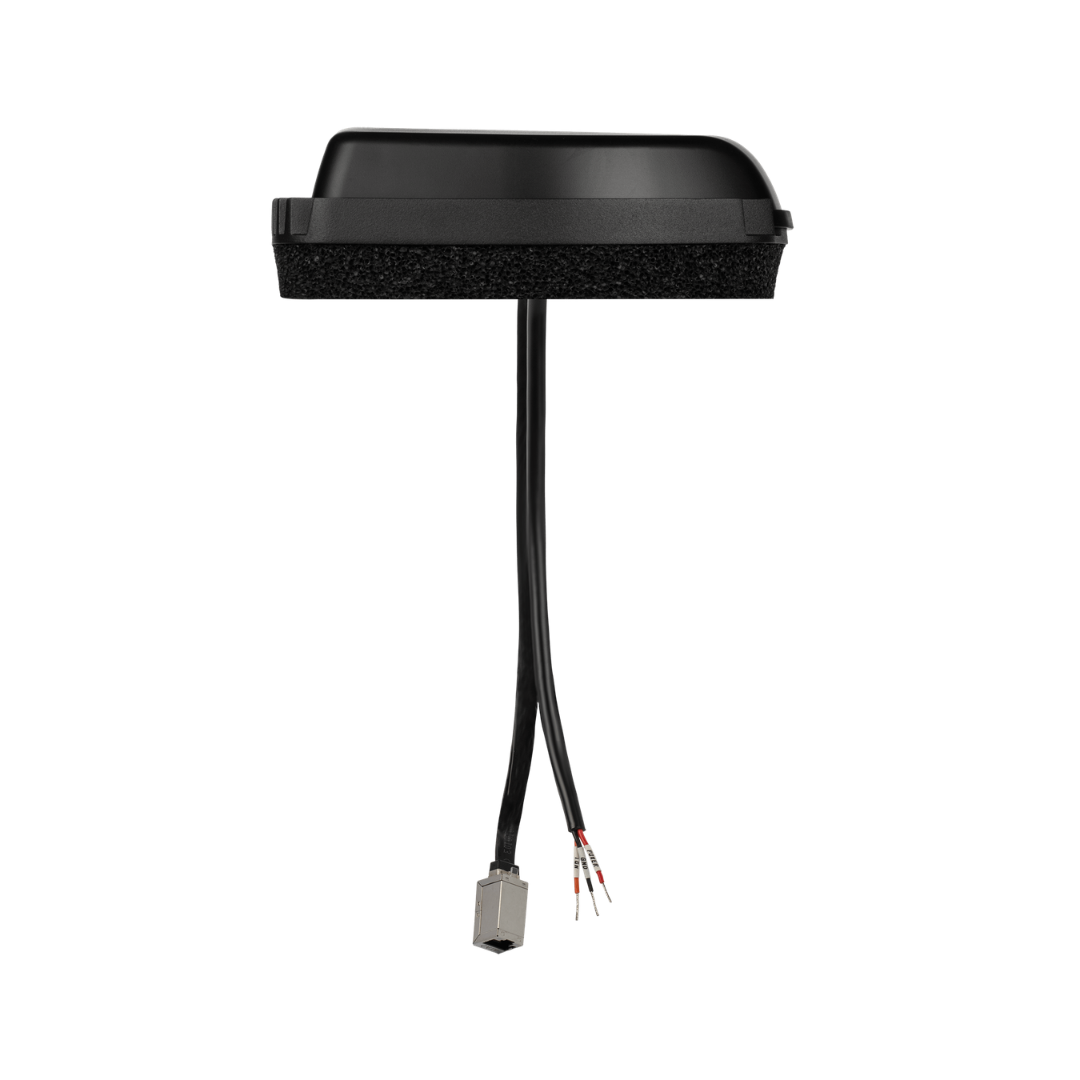

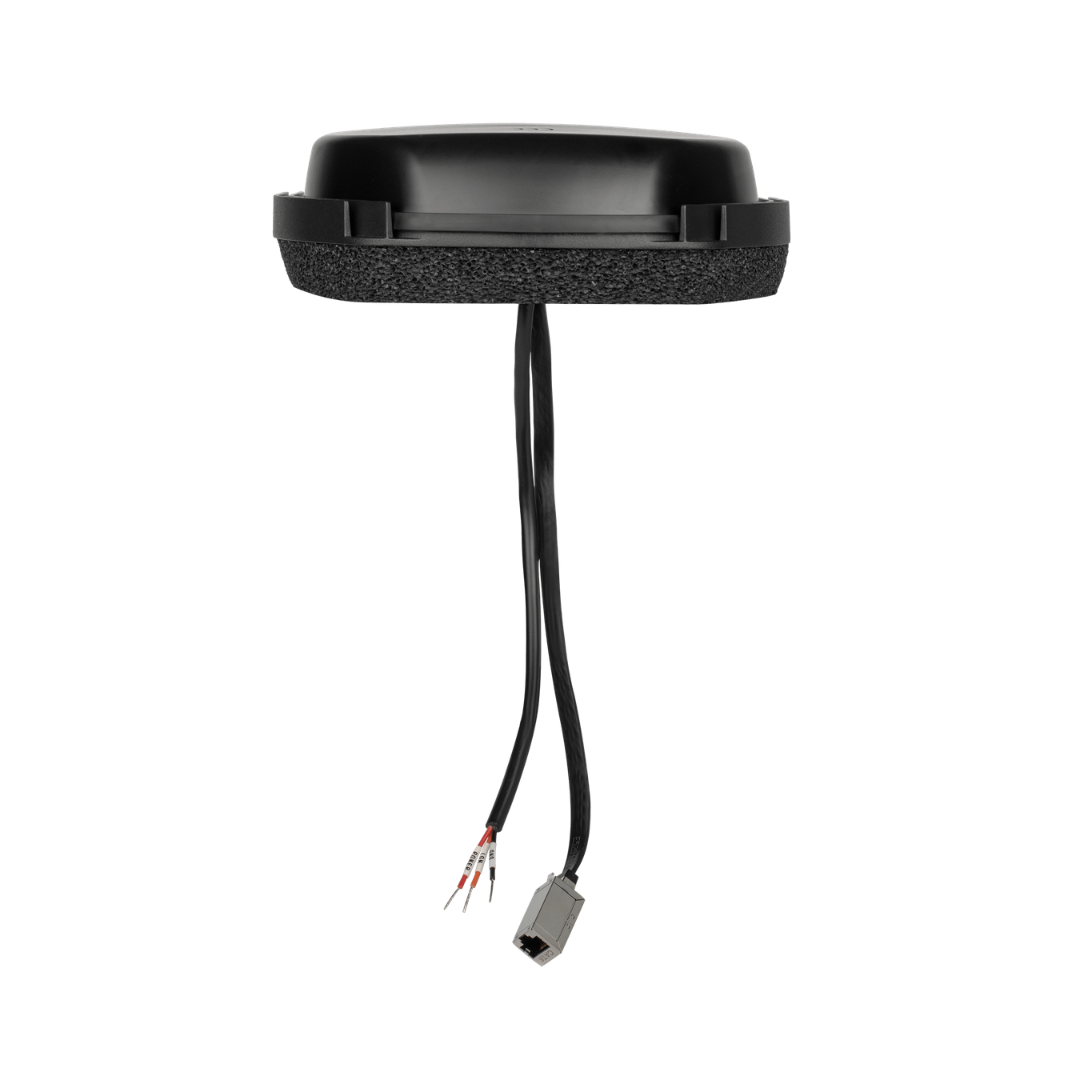

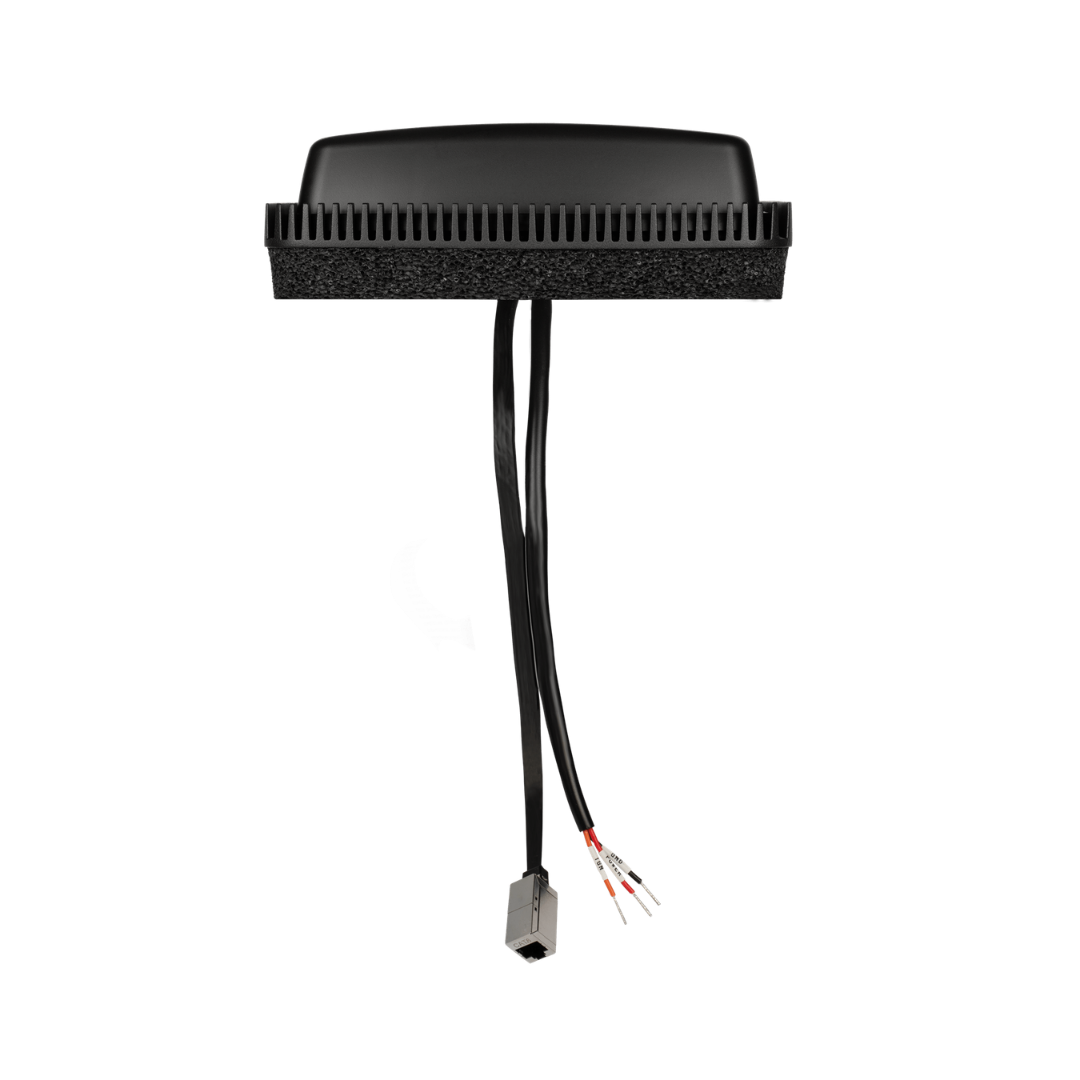

| Cable | 1 ft non-removable shielded multi-conductor: power (red), ground (black), ignition sense (yellow) |
| Compliance | ISO 7637-2, ISO 16750-2, IPC-9592B Class II |
| Consumption (@12V) | Standby: 0.66W | Idle: 10W | Peak: 15W |
Certifications
| Regulatory | FCC, IC/ISED (Canada), PTCRB |
| Carrier | AT&T, FirstNet Trusted, T-Mobile, T-Priority, Verizon |
| Safety | IECEE IEC 62368-1 |
| Vehicle | MIL-STD-810G, SAE J1455, ISO 7637-2, ISO 16750-2 |
| Materials | WEEE, RoHS 2, REACH, California Prop 65 |
| Reliability (MTBF) | 30+ years (Telcordia SR-332 at 25 degrees C) |
Software Configuration
- Simplified configuration with separate basic and advanced mode settings
- Automatic carrier switching to avoid cellular dead zones
- Configure device as a wireless Access Point
- Optional Depot Mode for Wi-Fi as WAN connectivity
- Stream GNSS data to 3rd party platforms such as Track Star
- Define routing policies
- Secure network with firewall
- Manage user accounts
- Install new firmware or saved configuration settings
- Download system logs
Cloud Services
- Monitor and configure devices remotely
- Organize devices into easy-to-manage groups
- Activate multiple devices at once; up to 4 eSIM profiles per device
- Optimize cellular connectivity with eSIM profile management and prioritization
- Schedule and push firmware updates over the air
- Enable event notifications
- Manage cloud users
- Download cloud logs
- AirgainConnect Fleet FAQ
- AirgainConnect Fleet Product Brief
- AirgainConnect Fleet Data Sheet
- AirgainConnect Fleet Quick Activation Guide
- AirgainConnect Fleet Quick Start Guide
- Quick Start Video - Getting Started (Part 1)
- Quick Start Video - eSIM Configuration and Activation (Part 2)
- Quick Start Video - Firmware Over-the-Air (FOTA) Updates (Part 3)
- AirgainConnect Fleet User Guide
- AirgainConnect Fleet Installation Instructions
- AirgainConnect Fleet Installation Video
- Installation of Remount Kit Video
- AirgainConnect Fleet IP67 Certification
- AirgainConnect Fleet IP69K Certification
FCC: Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. If this equipment does cause harmful interference to radio or television reception, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
IC (Innovation, Science and Economic Development Canada)
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of the device.
Cet appareil contient des emetteurs/recepteurs exempts de licence conformes au(x) RSS(s) d'ISDE. L'exploitation est autorisee aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage; et (2) l'appareil doit accepter tout brouillage subi, meme si le brouillage est susceptible d'en compromettre le fonctionnement.
IC Radiation Exposure Statement: This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment.
Cet equipement est conforme aux limites d'exposition aux rayonnements IC etablies pour un environnement non controle.
